Moviecam

Legendary vintage lenses, newly engineered.

cropped logo5
1980s resurrection

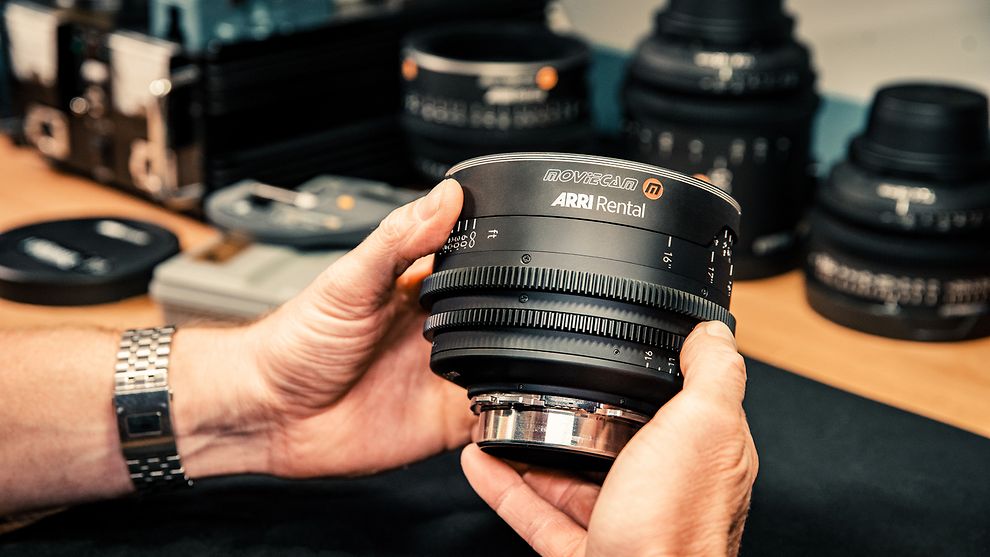

ARRI Rental Moviecam lenses combine vintage optics and a cinematic backstory with modern, high-performance lens housings. Respectfully updating a 1980s design from the legendary Moviecam brand, they are impressively compact and lightweight for large-format lenses, offering a characterful but consistent look.

Reference 3 tweaked
Smooth focus fall-off

Moviecam lenses were first produced in the 1980s, using extremely high-quality donor glass dating from the 1970s. When ARRI took over Moviecam in the 1990s, camera technology was its main focus, but a quite different benefit has been pursued in the 2020s by ARRI Rental: the Moviecam lenses.

Recognizing the appeal of these scarce vintage optics to digital filmmakers seeking a special look, ARRI Rental followed the original Moviecam design and built the same 1970s glass into robust lens housings with modern features, ready for a new life on large-format productions.

_DSC2772_c_hannesrohrer (1)
Reference 4 tweaked
Creative flares, easily controlled

Moviecam mountain showreel

Moviecam Mountain

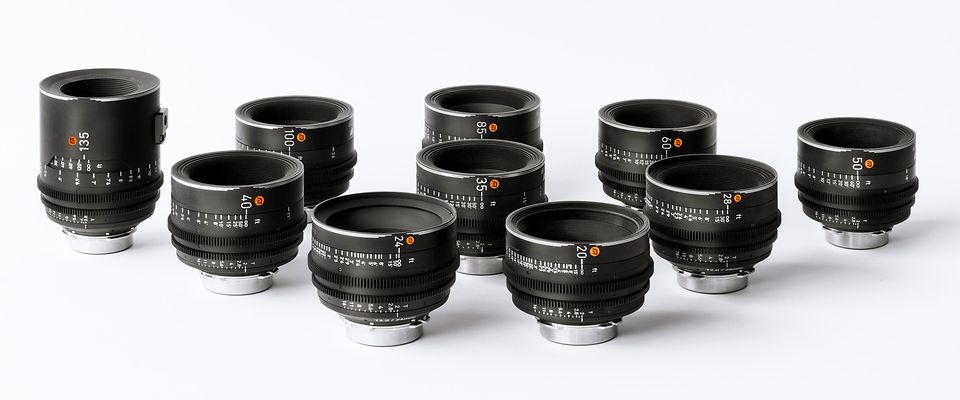

ARRI Rental Moviecam range

16 / 20 / 24 / 28 / 35 / 40 / 50 / 60 / 85 / 100 / 135 / 180 mm

0465_c_hannesrohrer_ret3 (1)

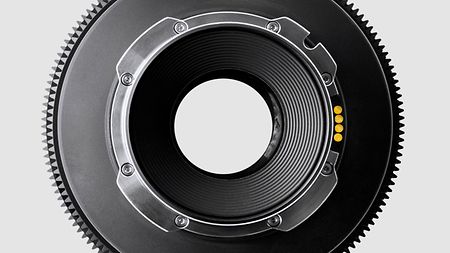

Built-in lens data

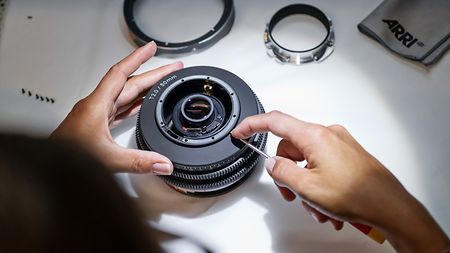

Equipped with exclusive LDM-2 chips that carry LDA lens metadata and are compatible with ARRI LDS-2, Moviecams can be used even on VFX-heavy productions, enabling efficient workflows on set and in post. The lens housings are manufactured in-house at ARRI Rental, incorporating all of the lens development team's experience creating and customizing diverse optics for clients. Highly uniform in size and lens ring placement, the Moviecams are as fast and easy to work with as any other modern cine lens series.

LDS chip Moviecam grey circular (1)

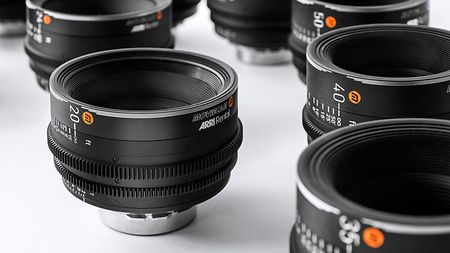

In terms of look, the Moviecams sit somewhere between the Canon K-35 and DNA LF vintage lens series offered by ARRI Rental, thereby widening creative options for large-format filmmakers. Despite their significant resolving power, the Moviecams retain a gentle and natural feel, with attractive focus fall-off. Flare handling is interesting and characterful, but not over-lively or troublesome to control.

Aside from the 100 mm and 135 mm at T2.8, all of the lenses are T2, though the 60 mm goes a stop further to T1.5 for low-light situations and bokeh-enriched portraits. Optical performance is consistent throughout the range, making it a great choice for cinematographers who want a vintage aesthetic but also complete freedom to explore all focal lengths without creating work for themselves in post.

0481_c_hannesrohrer_ret3 (4)

Technical data

Moviecam
16 mm

Moviecam
20 mm

Moviecam
24 mm

Moviecam
28 mm

Lens mount

LPL

LPL

LPL

LPL

LDS

LDM-2*LDM-2*LDM-2*LDM-2*

Aperture

T2 - T16

T2 - T16

T2 - T16

T2 - T16

Close focus

20.3 cm / 8"

20.3 cm / 8"

27.9 cm / 11"

30.5 cm / 12"

Front diameter

114 mm / 4.49"

114 mm / 4.49"

114 mm / 4.49"

114 mm / 4.49"

Weight (lens only)

1.1 kg / 2.4 lb

1 kg / 2.2 lb

1 kg / 2.2 lb

1 kg / 2.2 lb

* LDM-2 chip carries LDA metadata and is compatible with LDS-2

SHOW MORE
